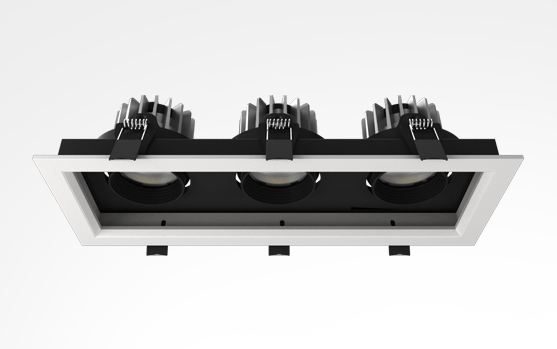

Lighting characteristics

The Omma Square lights are ideal for the tertiary and residential sectors. They’re designed for decorative solutions for prestigious interiors. The system ensures extremely easy maintenance and the minimum energy consumption. The optic of these models can be orientated to obtain different flux angles for particular lighting needs.

Physical/mechanical characteristics

The lamp is made using the best technologies. A die-cast aluminium body with a polycarbonate or glass lens – both elements particularly robust. The lamp comes in various sizes so it can be flush-mounted in shallow false ceilings. Modular configurations are possible, with 1-3 lamps depending on the power level.

Electrical characteristics

The lamps of the Omma Square range have an insulated driver that’s installed externally. Electronic wiring, 85/265V-50/60Hz. Power factor > 0.90. Compliance with standards IEC 60598-1 – CEI EN 60598-1.

Regulations

Produced in accordance with EN standards  EN55015:2013, EN61547:2009, EN61000-3- 2:2006+A1:2009+A2:2009, EN61000-3-3:2013, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2004+A1:2010, EN61000-4-5:2006, EN61000-4-6:2009, EN61000-4-8:2010, EN61000- 4-11:2004, EN 60598-1:2008+A11:2009, EN 62471:2008, EN 62031:2008, IEC62321:2013, EN60529:1992, EN 62262:2002, EN 12464-1.

Photobiological Risk Group “Exempt” (EN 62471:2006). International Protection Class IP20. Can be installed on normally inflammable surfaces.
